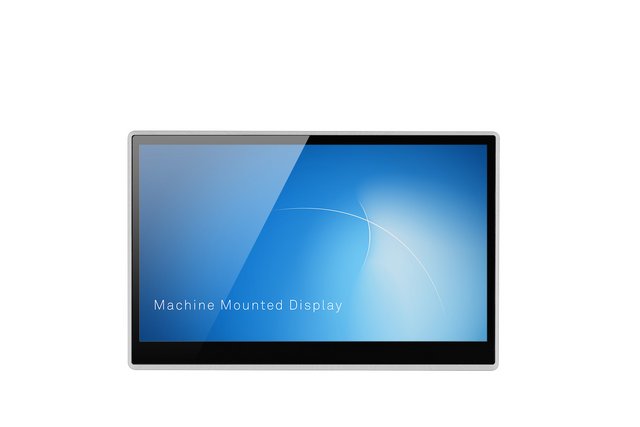

Hygiene monitor MMD9000

Pure hygiene

Mount the display. Increase sustainability.

Production processes in the food, pharmaceutical and chemical industries are subject to the strictest hygiene requirements. At the same time, companies in these industries expect reliable, high-performance machines and systems. The robust, powerful MMD9000 series monitors with their fully enclosed stainless steel housing, have been developed and designed to ensure maximum sustainability in the sensitive hygiene sector.

High-performance hygiene displays for machine and system operation in cleanrooms.


Compact elegance

Without screws or edges, the slender, compact, hygienic HMI display achieves best results when it comes to controlling and visualising production processes.


A thing of beauty

Excellent results are in the eye of the beholder: the 15.6" TFT display with backlight in full HD quality and capacitive multitouch function ensures comprehensive visualisation and user-friendly control of all systems and processes. Optimal brightness and a wide viewing angle are helpful when undertaking demanding inspection work.




Delivers what it promises

Installation made easy. The flexible mounting concept offers good options for installation – either directly via a VESA75 connection or with a tube adapter on the 48mm supporting arm. This flexibility allows the monitor to be installed either horizontally or vertically. The cable is routed through the supporting arm or mounting adapter for protection.


Purely hygienic

One wipe – and dirt and bacteria don’t stand a chance. The design without screws, joints or edges means the monitor can be easily cleaned with commercially available detergents to meet the strictest hygiene requirements. Ideal for use in the food, beverage, pharmaceutical and chemical industries.



Certified clean room suitability to GMP A/B standards: the MMD9000 series monitors have been tested by the Fraunhofer Institute IPA for clean room suitability and expertly manufactured in accordance with specified criteria in terms of materials and design. The certification meets the requirements of EHEDG, ISO 14159-1 and DIN EN 1672-2.



In addition, the front is built with IK08-quality tempered glass to withstand extreme impacts.

Performance at a glance

Display

Full HD for maximum overview

PCAP multitouch screen

Easy to operate via USB – even when wearing gloves

Protection rating

IP69K: all-around protection from dirt and moisture

Robust

Shockproof in accordance with IK08 standards due to its tempered glass fitted with a shatter protection film. Resistant to cold and heat

Everything at a glance

MMD9000 series stainless steel monitors are optimally designed to meet the strict hygiene standards in the food, beverage, pharmaceutical and chemical industries. Find out more!

Datasheet
Manual

Driver Download

Our driver download area is currently being restructured and our support team will be happy to provide you with the appropriate drivers for your ADS-TEC device.
You can reach us via the form or directly by e-mail at support.iit@ads-tec.de.


Prolongs the security of your business.

ADS-TEC Industrial IT once again shows that quality standards by no means end with the development and production of outstanding technology. The company also provides excellent service. With the Basic, Silver and Gold service packages, you can extend the life cycle of your product even after the warranty has expired and protect it against technical failures for a prolonged period. For repairs, you can specify defined response times between 3 and 10 working days for 36 or 60 months.

Need even more security? Full comprehensive coverage (FCC) provides you with virtually complete coverage for industrial computing products – which also covers mechanical damage.

The right accessories:


VESA adapter

• Adapter for VESA75 / VESA100
• IP69K in stainless steel


Order No. DV-MMXADAPT16 010-AA


Tube adapter

• For mounting on 48 mm standard pipe
• Mounting from below / from the side
• IP69K in stainless steel


Order No. DV-MMXADAPT16 020-AA



MES9000_OPC9000_VMT9000_IPC9000_MMD9000_MMD8000_OPD9000_OPD8000_Tischnetzteil-EU-CH-UK.png

Power supply with 3-metre cable

• Input 96..264 V AC, 47..63 Hz, Output 24 V DC, 65 W
• Dimensions: 53 x 38 x 115 mm (B x H x T)
• Cable connection over 3 pole. Screw terminals
• incl. Mains cable 3 m


Order No. DV-NZT-0001-0 120-AA (EU / CH / UK)
Order No. DV-NZT-0001-0 020-AA (EU)
